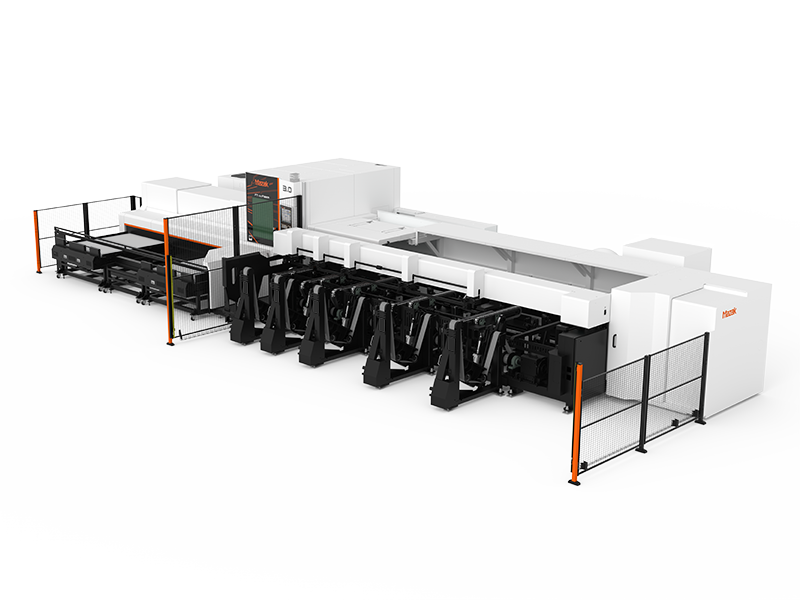

Model: FT-150 FIBER

Machine Specifications

Specification Values
Capacity
Maximum Cutting Size (Round) 152 mm / 6.0 in
Maximum Cutting Size (Square) 125 mm / 4.92 in
Maximum Workpiece Length (Loading) 6500 mm / 255.91 in
Maximum Workpiece Length (Unloading) 3000 mm / 188.11 in

Detailed description

Higher productivity thanks to high-speed and high-quality cutting of small diameter pipe material




The material handling,laser cutting and unloading of finished workpieces are all performed automatically by just loading material into loading station.

























Max. material length?for loading : 6.5 m (21.3') /?8 m (26.2') Option
Max. material length?for unloading : 3 m (9.8') /?4.5 m (14.8'), 6.5 m (21.3') Option
Workpiece diameter : round pipe?Φ 152.4 mm (Φ 6.0")
: square pipe?□ 125 mm (□ 4.92")








Higher speed cutting



  • High-speed acceleration and accuracy functions for small diameter material

  • Fast chuck indexing and high-speed feedrate

  • Reduced time required for piercing




Higher productivity



  • Large capacity bundle loader enables continuous operation over extended periods of time

  • Unloader automatically unloads finished workpieces

  • Auto-profiler calibration, nozzle cleaning, and other automatic functions
